6b          Extra info

Diverse plaatjes en info over metalen in de framebouw

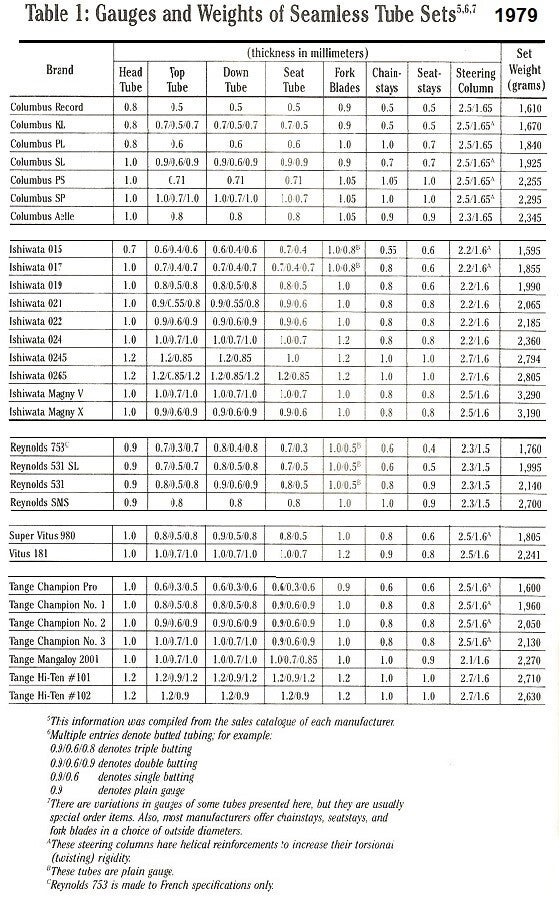

 Pictures and tables of metals used in frame building

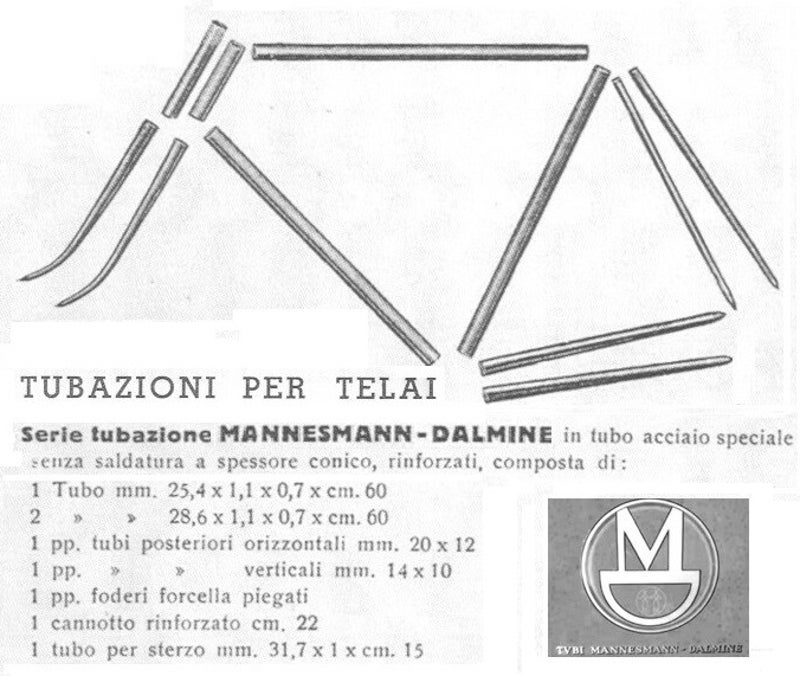

From the fifties; most Cinelli B's were built with this tube.

Back in 1950 horizontal stays were 20mm

   The decals of Columbus have an evolution throughout the years

Columbus  around 1990

Hetchins rearends were patented  (not accidents)

Tange Ultimate

Ishiwata tubing 80's

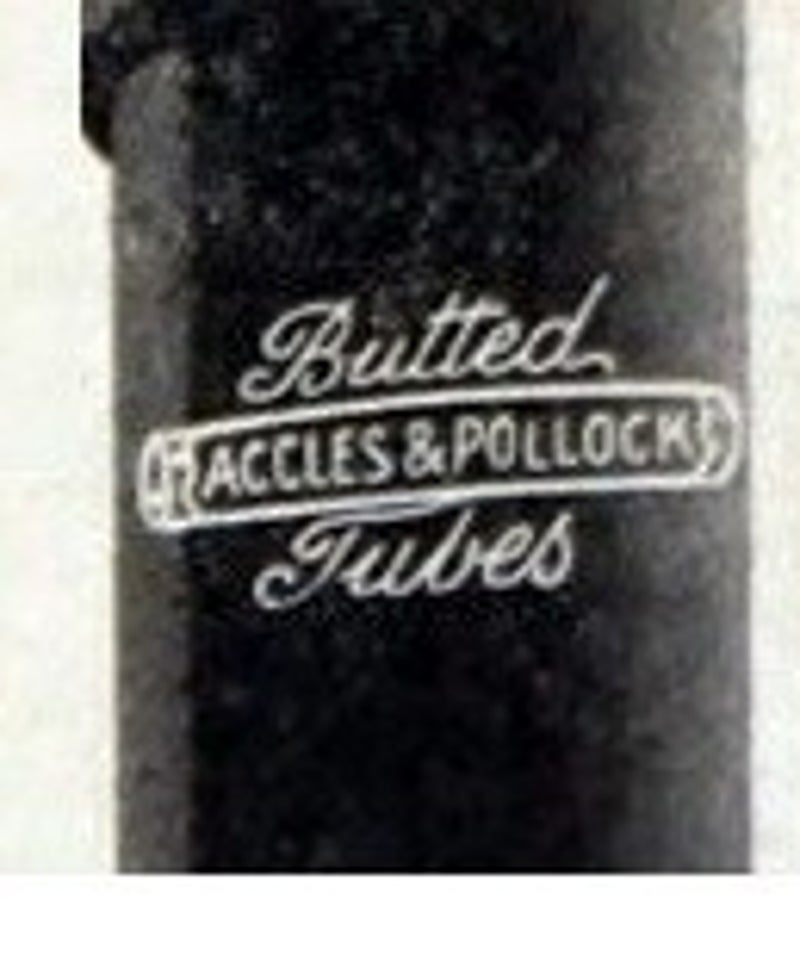

 D-shaped forkcrown with A&P D-shaped forkblades.

Early aero-tubing around 1980

Cinelli Laser 1984
